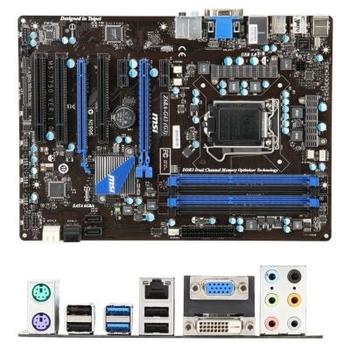

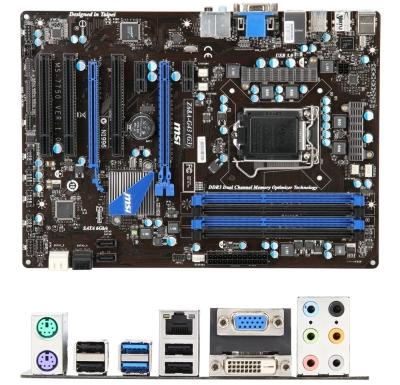

Základní deska MSI Z68S-G43
Základní deska, socket 1155, iZ68, DDR3, PCIe 3.0, PCIe 2.0, SATAII/300+SATAIII/600 RAID, GLAN, 8ch audio, ATX
Toto zboží bylo již ukončeno.
Micro-Star International Co Ltd. C/O MSI Computer Europe BV, A. Science
Park Eindhoven 5706, 5692 ER, Son, The Netherlands, cz-fae@msi.com
MSI
je tchajwanský výrobce počítačového hardwaru a elektroniky založený v roce
1986. Společnost se specializuje na základní desky, grafické karty,
notebooky, herní počítače, monitory a další příslušenství. Produkty značky
MSI jsou oblíbené zejména mezi hráči a náročnými uživateli díky vysokému
výkonu, moderním technologiím a kvalitnímu zpracování.
CPU
• Supports Intel® i3/i5/i7 processors in LGA1155 package.
Please
refer to CPU Support for compatible CPU; the above description is for
reference only.
Chipset
• Intel® Z68 (B3) Chipset
Main
Memory
• Supports four unbuffered DIMM of 1.5 Volt DDR3
1066/1333/1600*/1866*/2133*(OC) DRAM, 32GB Max
• Supports 1GB/ 2GB/
4GB/ 8GB DRAM size
• Supports Dual channel mode
Slots
•
1 PCI Express gen3 x16 slot, 1 PCI Express gen2 x16 slot
• 2 PCI
Express gen2 x1 slots
• 3 PCI slots, support 3.3V/ 5V PCI bus Interface
On-Board
SATA
• SATAII controller integrated in Intel® Z68 (B3) chipset
-
Up to 3Gb/s transfer speed.
- Supports four SATAII ports (SATA3~6) by
Z68 (B3) PCH
• SATAIII controller integrated in Intel® Z68 (B3)
chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII ports
(SATA1~2) by Z68 (B3) PCH
- SATA1~6 ports support RAID 0/1/5/10 mode
Audio
•
Chipset integrated by Realtek® ALC887
• Flexible 8-channel audio
with jack sensing
• Compliant with Azalia 1.0 Spec
• Meet
Microsoft Vista Premium spec
LAN
• Supports one PCI Express LAN
10/100/1000 Fast Ethernet by Realtek 8111E.
Internal I/O Connectors
•
ATX 24-Pin power connector
• 4-pin ATX 12V power connector
•
CPU x 1 / System x 3 FAN connectors
• Front panel audio connector
•
Front panel connector
• 1 x chasis intrusion connector
• 4 x
USB 2.0 connectors
• 4 x Serial ATAII connectors
• 2 x Serial
ATAIII connectors
• 1 x Clear CMOS jumper
• 1 x SPDIF-out
connector
• 1 x TPM module connector
• 1 x Serial port
connector
• 1 x Parallel port connector
Back Panel I/O
Ports
• 1 x PS/2 Keyboard port
• 1 x PS/2 Mouse port
•
6 x USB 2.0 ports
• 1 x Graphic Card port
• 1 x DVI-D port
•
1 x RJ45 LAN Jack
• 1 x 3 in 1 audio jack
BIOS
• The
mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral
devices and expansion cards of the board automatically.
• The mainboard
provides a Desktop Management Interface(DMI) function which records your
mainboard specifications.
Dimension
• 30.5cm(L) x 22.0cm(W) ATX
Form Factor
Mounting
• 6 mounting holes
