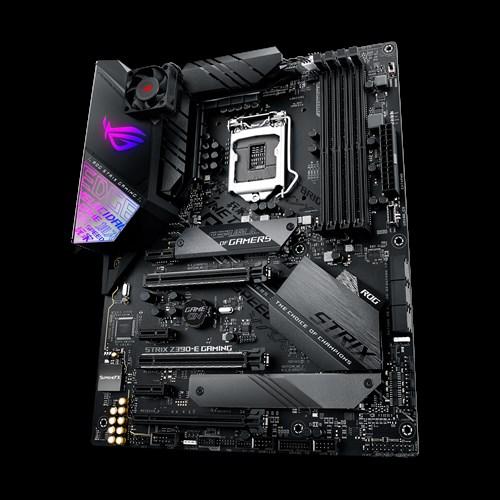

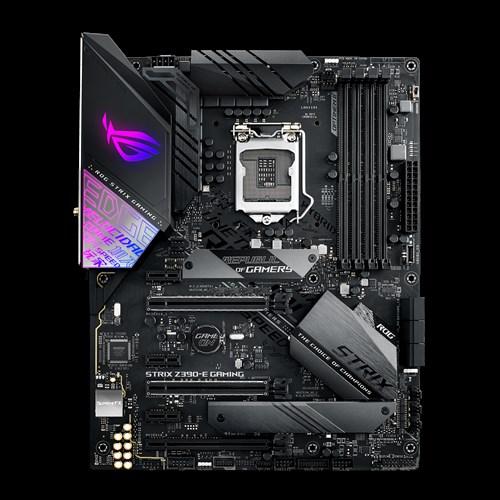

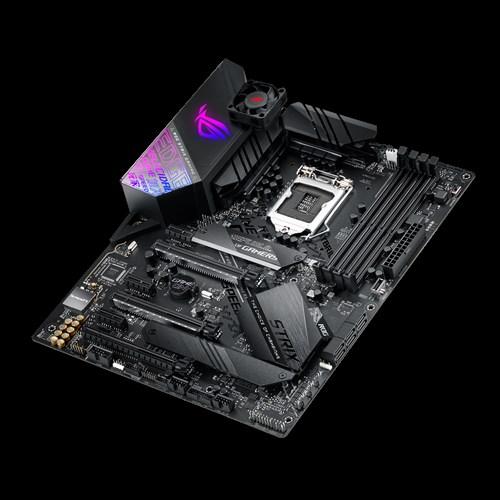

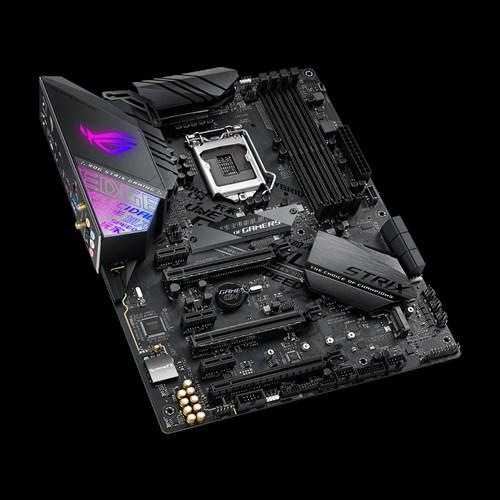

Základní deska ASUS ROG STRIX Z390-E GAMING

Chipset: Intel® Z390

Rozměrový formát: ATX ( 30.5 cm x 24.4 cm )
Podpora pro procesory: 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Patice procesoru: Socket 1151

Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture
Podpora pro paměti: DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Memory
Max.velikost operační paměti: 64 GB
Podpora pro paměti typu: Non-ECC, XMP

Grafická karta: Intel® HD Graphics
*HDMI maximální rozlišení 4096 x 2160 @ 30 Hz
*DisplayPort maximální rozlišení 4096 x 2304 @ 60 Hz
Zvuková karta: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Síťová karta:
*Intel® I219V
*Intel® Wireless-AC 9560 (Wi-Fi 802.11 a/b/g/n/ac)
*Bluetooth® 5.0

Rozšiřující sloty:
*2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
*1 x PCIe 3.0/2.0 x16 (max at x4 mode)
*3 x PCIe 3.0/2.0 x1

RAID řadič: Raid 0, 1, 5, 10

SATA: 6 x SATA 6Gb/s port(s)
M.2:
*1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
*1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)Firewire: Ne
USB:
*Intel® Z390 Chipset :
*1 x USB 3.1 Gen 2 front panel connector port(s)
*Intel® Z390 Chipset :
*4 x USB 3.1 Gen 2 port(s) (3 x Type-A+1 x USB Type-CTM)
*Intel® Z390 Chipset :
*4 x USB 3.1 Gen 1 port(s) (2 na zadním panelu, blue, 2 integrované na základní desce)
*Intel® Z390 Chipset :
*6 x USB 2.0 port(s) (2 na zadním panels, 4 integrované na základní desce)

Interní porty:
*1 x Aura Addressable Strip Header(s)
*1 x AAFP connector
*2 x Aura RGB Strip Header(s)
*1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
*2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
*1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
*1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
*6 x SATA 6Gb/s connector(s)
*1 x M.2_FAN connector
*1 x CPU Fan connector(s)
*1 x CPU OPT Fan connector(s)
*2 x Chassis Fan connector(s)
*1 x W_PUMP+ connector
*1 x 24-pin EATX Power connector(s)
*1 x 8-pin ATX 12V Power connector(s)
*1 x System panel(s) (Chassis intrusion header is inbuilt)
*1 x 5-pin EXT_FAN(Extension Fan) connector
*1 x MemOK! II switch(es)
*1 x Thermal sensor connector(s)
*1 x CPU OV
*1 x Clear CMOS jumper(s)
*1 x Node Connector(s)
*1 x 14-1 pin TPM connector
*1 x COM port header
*1 x AIO PUMP Header
*1 x USB 3.1 Gen 2 front panel connector

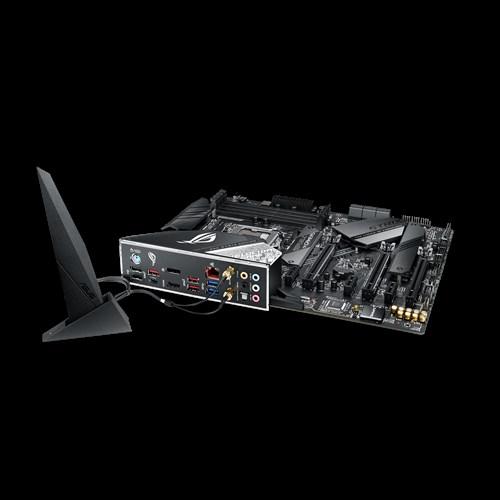

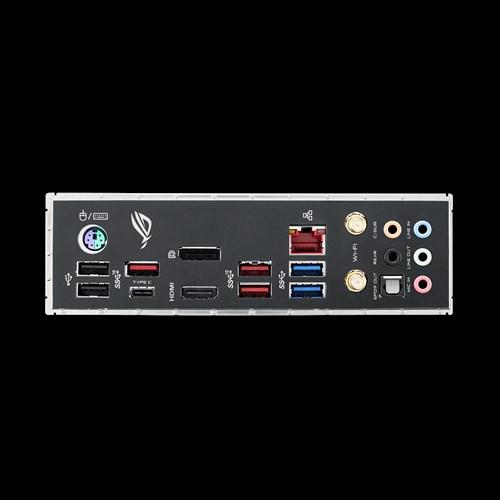

Externí porty:
*1 x DisplayPort
*1 x HDMI
*1 x LAN (RJ45) port(s)
*4 x USB 3.1 Gen 2 (3 x Type-A+1 x USB Type-CTM)
*2 x USB 3.1 Gen 1
*2 x USB 2.0
*1 x Optical S/PDIF out
*5 x Audio jack(s)
*1 x ASUS Wi-Fi Module

BIOS: UEFI AMI BIOS 1 x 128 Mb Flash ROM

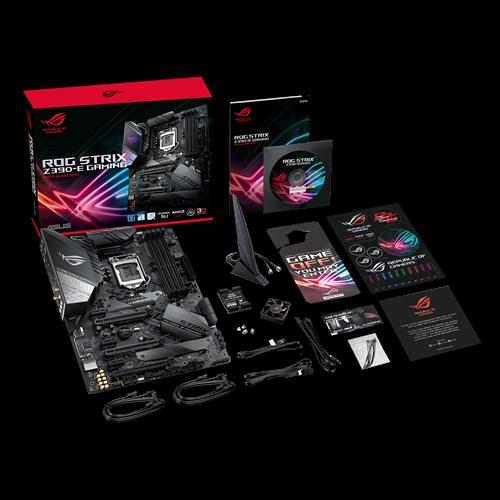

Příslušenství:
*User"s manual
*4 x SATA 6Gb/s cable(s)
*1 x M.2 Screw Package
*1 x Supporting DVD
*1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
*1 x CABLE TIE BLACK
*1 x SLI HB BRIDGE(2-WAY-M)
*1 x ROG Strix stickers
*1 x Assistant Fans(40mm)
*1 x screws for Assistant Fan(s)
*1 x ROG Door Hanger(s)
*1 x Extension Cable for RGB strips (80 cm)
*1 x Extension cable for Addre
