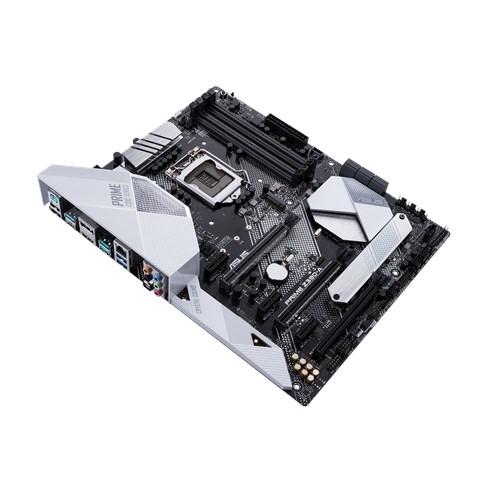

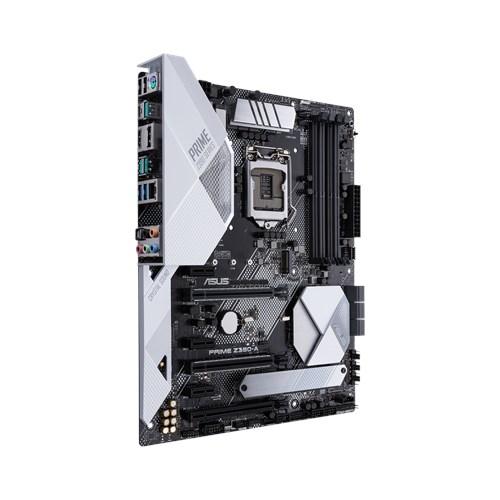

Základní deska ASUS Prime Z390-A

Chipset: Intel® Z390

Rozměrový formát: ATX ( 30.5 cm x 24.4 cm )
Podpora pro procesory: 9th / 8th Generation Pentium®/Celeron® Processors
Patice procesoru: Socket 1151

Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture
Podpora pro paměti: DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz
Max.velikost operační paměti: Podpora pro paměti typu: XMP, Non-ECC

Grafická karta: Intel® HD Graphics
*HDMI maximální rozlišení 4096 x 2160 @ 30 Hz
*DisplayPort 1.2 maximální rozlišení 4096 x 2304 @ 60 Hz

Zvuková karta: Realtek® ALC S1220A 8-Channel High Definition Audio CODEC
Síťová karta: Intel® I219V, 1 x Gigabit LAN Controller(s)

Rozšiřující sloty:
*2 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**)
*1 x PCIe 3.0/2.0 x16 (max at x4 mode)
*3 x PCIe 3.0/2.0 x1

RAID řadič: RAID 0, 1, 5, 10

SATA: 6 x SATA 6Gb/s port(s)
M.2:
*1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
*1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
USB:
*Intel® Z390 Chipset :
*4 x USB 3.1 Gen 2 port(s)
*Intel® Z390 Chipset :
*5 x USB 3.1 Gen 1 port(s) (3 na základní desce)
*Intel® Z390 Chipset :
*6 x USB 2.0 port(s) (4 na základní desce)

Interní porty:
*2 x Aura RGB Strip Headers
*1 x USB 3.1 Gen 1 front panel TypeC™ connector
*1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
*3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
*1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
*1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
*1 x TPM header
*1 x COM port(s) connector(s)
*6 x SATA 6Gb/s connector(s)
*1 x CPU Fan connector(s) (1 x 4 -pin)
*1 x CPU OPT Fan connector(s) (1 x 4 -pin)
*2 x Chassis Fan connector(s) (2 x 4 -pin)
*1 x AIO_PUMP connector (1 x 4 -pin)
*1 x W_PUMP+ connector

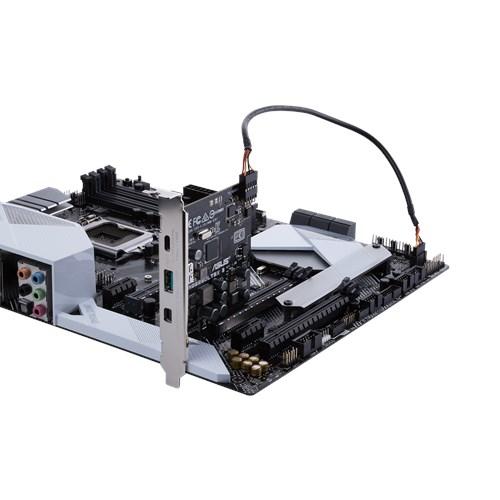

*1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support
*1 x 24-pin EATX Power connector(s)
*1 x 8-pin ATX 12V Power connector(s)
*1 x Front panel audio connector(s) (AAFP)
*1 x System panel(s) (Q-Connector)
*1 x MemOK! II switch(es)
*1 x CPU OV
*1 x Power-on button(s)
*1 x Clear CMOS jumper(s)
*1 x Node Connector(s)
*1 x EXT_Fan header
*1 x Thermal sensor connector
*1 x M.2 Fan Header

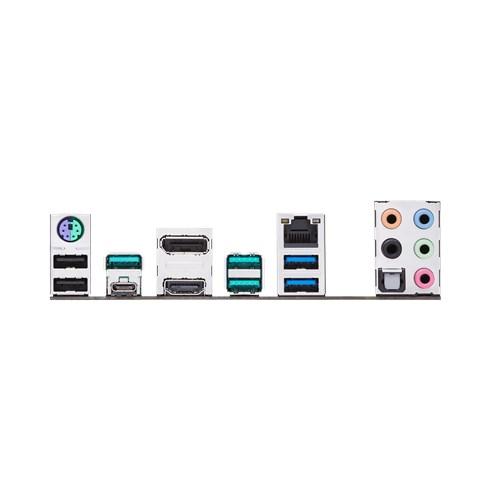

Externí porty:
*1 x PS/2 keyboard/mouse combo port(s)
*1 x DisplayPort
*1 x HDMI
*1 x LAN (RJ45) port(s)
*3 x USB 3.1 Gen 2 (teal blue)Type-A,
*1 x USB 3.1 Gen 2 Type-C
*2 x USB 3.1 Gen 1 (blue) Type-A
*2 x USB 2.0
*1 x Optical S/PDIF out
*5 x Audio jack(s)

BIOS: AMI BIOS, 128 Mb Flash ROM

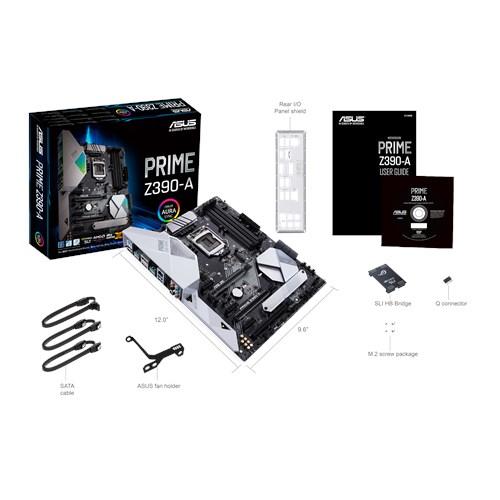

Příslušenství:
*User"s manual
*ASUS Q-Shield
*3 x SATA 6Gb/s cable(s)
*1 x M.2 Screw Package
*1 x SLI HB BRIDGE(2-WAY-M)
*1 x Q-Connector
*1 x SCD
*1 x CPU Fan Holder
