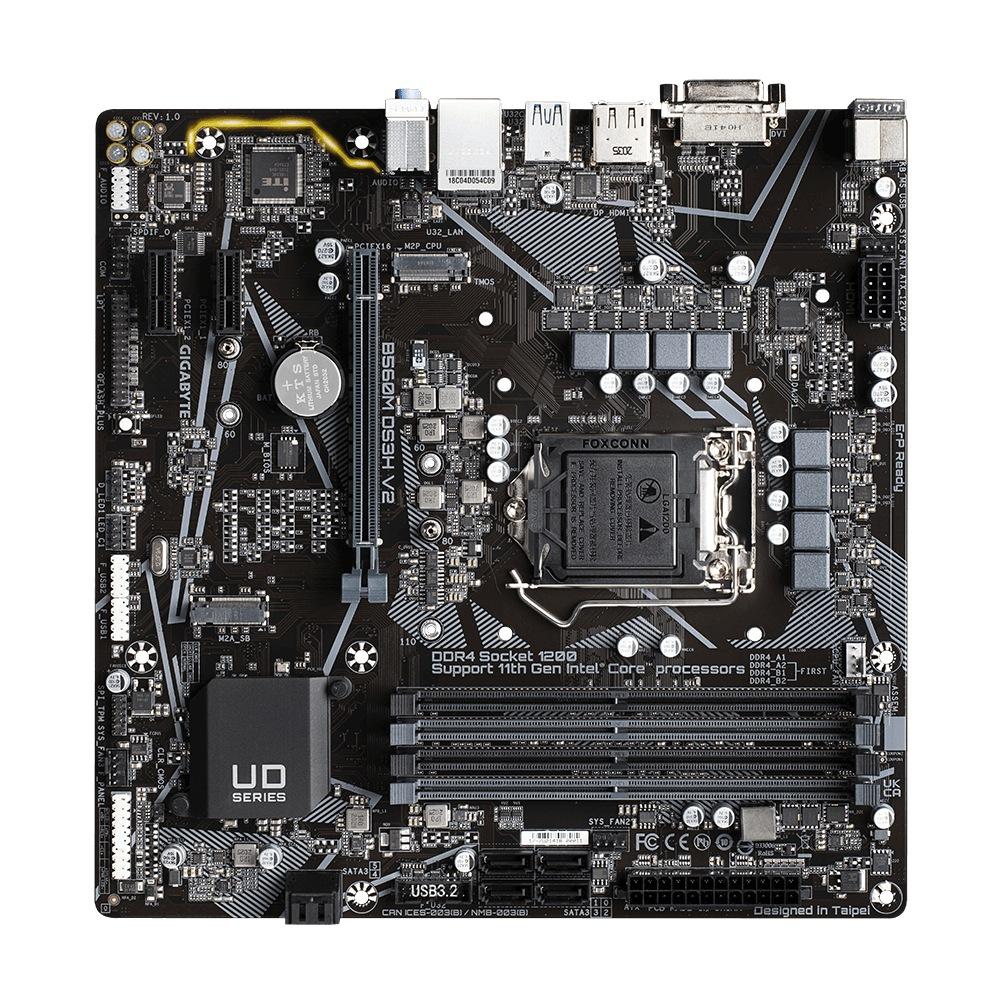

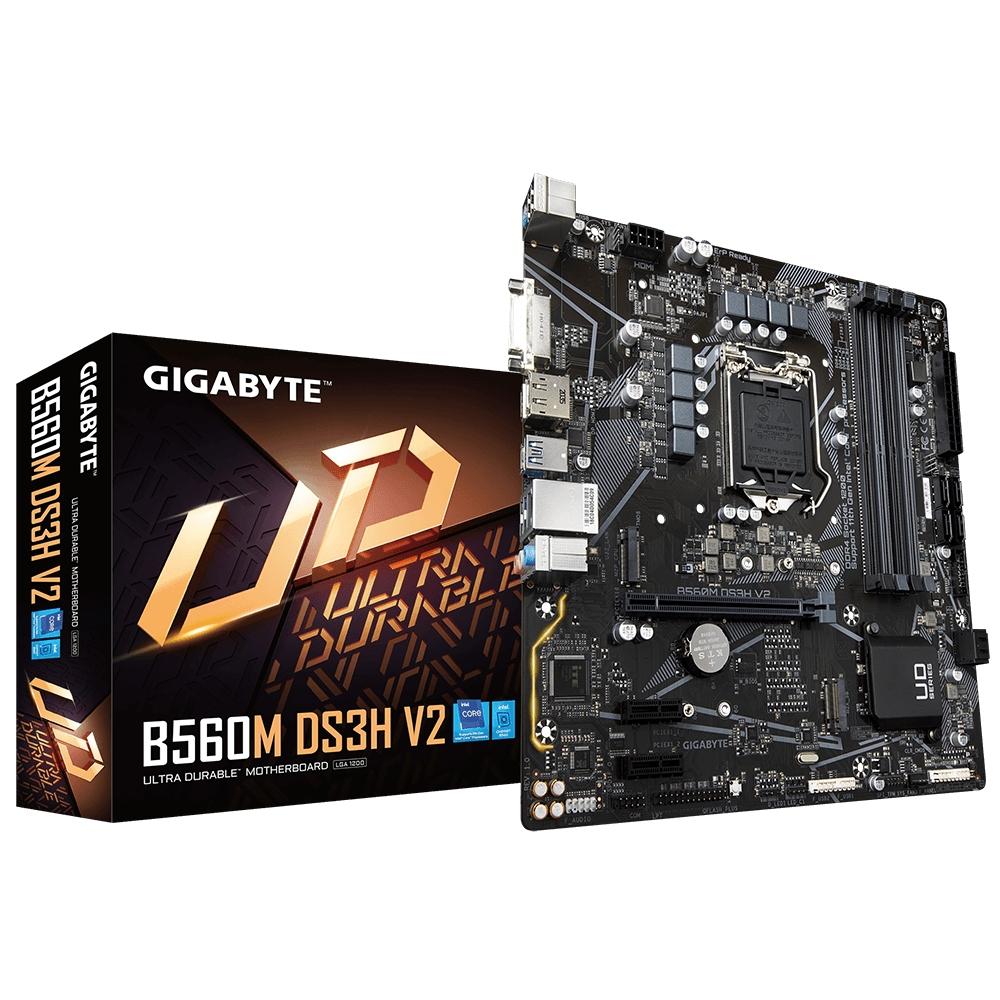

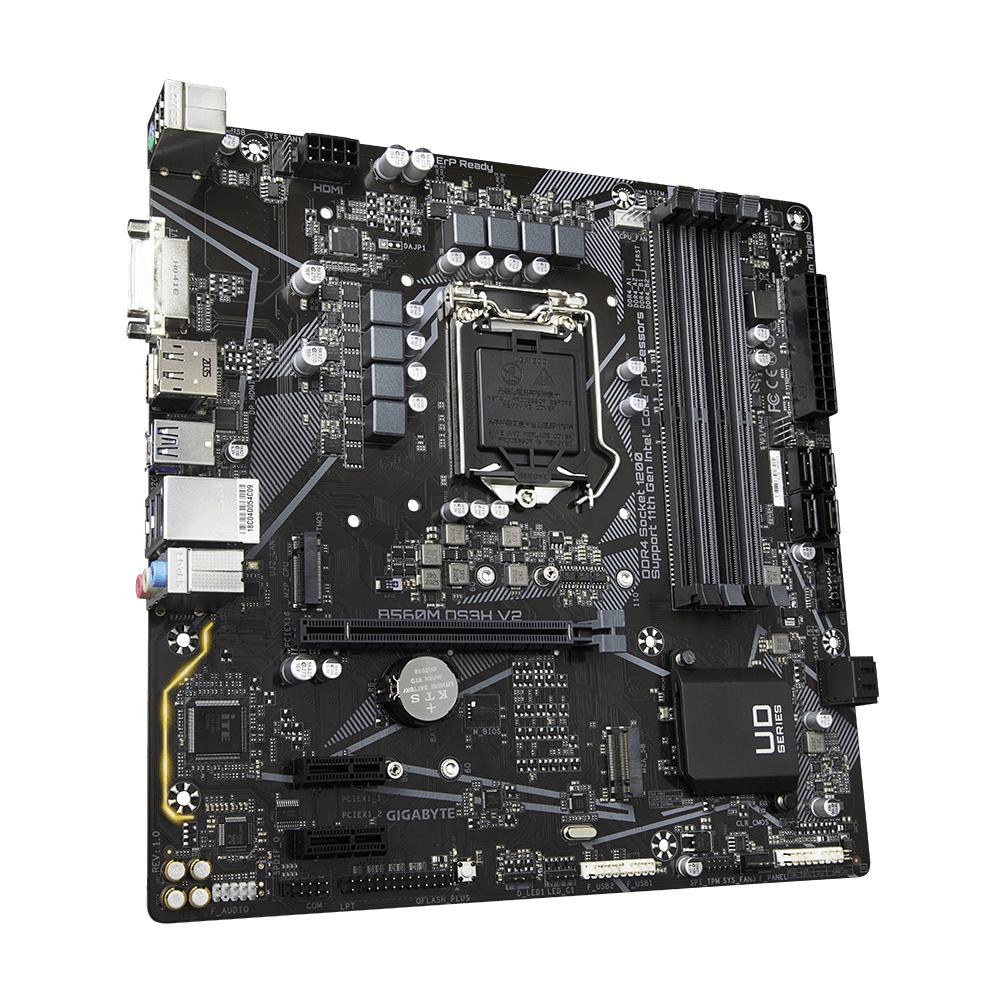

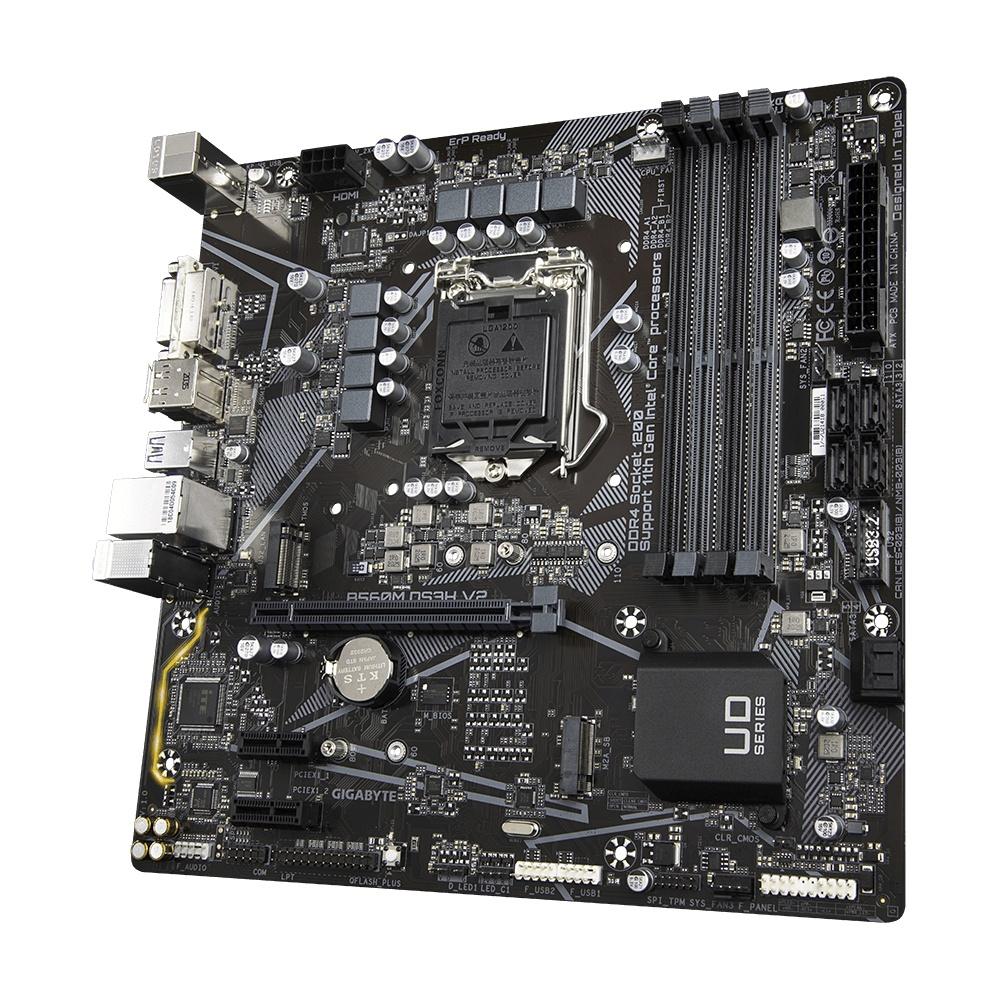

Základní deska GIGABYTE B560M DS3H V2

Chipset: Intel B560 Express Chipset

Rozměrový formát: Micro ATX Form Factor (24.4cm x 24.4cm)
Podpora pro procesory:

• 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
• 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
• L3 cache varies with CPU

Patice procesoru: LGA1200

Pozice na paměti: 4 x DDR4 DIMM sockets
Podpora pro paměti:
11th Generation Intel Core i9/i7/i5 processors:

• Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz

10th Generation Intel Core i9/i7 processors:

• Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel Core i5/i3/Pentium/Celeron processors:

• Support for DDR4 2666/2400/2133 MHz memory modules

Max.velikost operační paměti: 128 GB
Podpora pro paměti typu:

• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Grafická karta:

• Integrated Graphics Processor-Intel HD Graphics

Zvuková karta:

• Realtek Audio CODEC

Síťová karta:

• Realtek GbE LAN chip (1 Gbps/100 Mbps)

Rozšiřující sloty:

• 1 x PCI Express x16 slot, running at x16
• 2 x PCI Express x1 slots

RAID řadič: ne

SATA:

• 6 x SATA 6Gb/s connectors

M.2:

• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)
• 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)

USB:

• zadní USB porty ( celkem 6 )
• 1 x USB Type-C port with USB 3.2 Gen 1 support
• 3 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• přední USB porty ( celkem 6 )
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports

Interní porty:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 6 x SATA 6Gb/s connectors
• 2 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x parallel port header
• 1 x Clear CMOS jumper
• 1 x Q-Flash Plus button

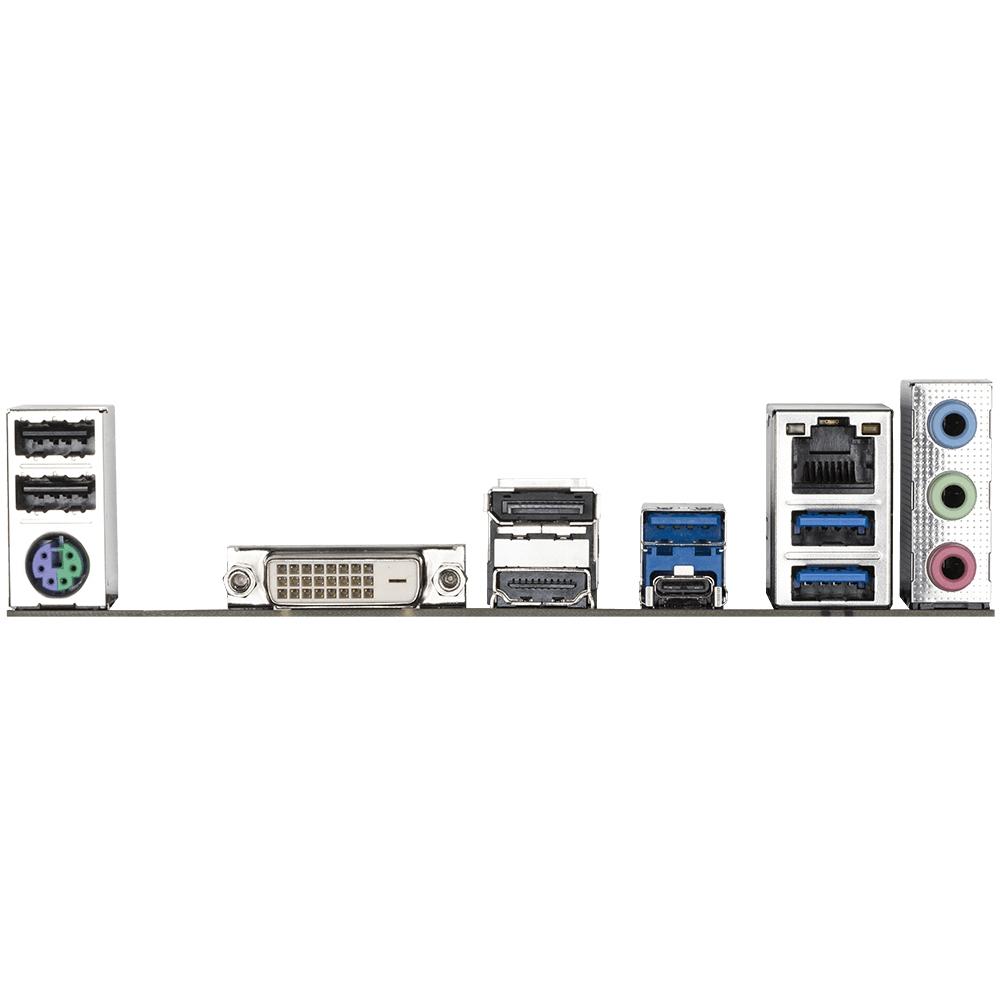

Externí porty:

• 2 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 1 x DVI-D port
• 1 x DisplayPort
• 1 x HDMI port
• 3 x USB 3.2 Gen 1 ports
• 1 x USB Type-C port, with USB 3.2 Gen 1 support
• 1 x RJ-45 port
• 3 x audio jacks

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Stránka výrobce: https://www.gigabyte.com/Motherboard/B560M-DS3H-V2-rev-10/sp#sp
