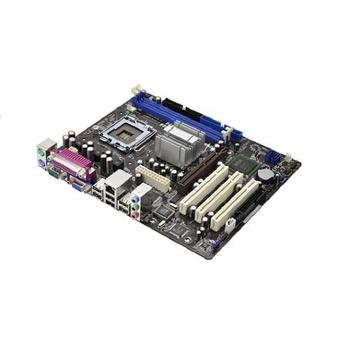

Základní deska ASRock 775I65G R3.0

CPU
- LGA 775 for Intel® Dual-Core Core™ 2 Extreme / Core™ 2 Duo / Pentium® D / Pentium® 4 / Celeron® D
- FSB 1066 MHz for external graphics
- FSB 800/533 MHz for internal graphics
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU

Chipset
- Northbridge: Intel® 865G
- Southbridge: Intel® ICH5

Memory
- Dual Channel DDR memory technology
- 2 x DDR DIMM slots
- Supports DDR400/333/266
- Max. capacity: 2GB

BIOS
- 4Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
Audio, Video and Networking

Graphics
- Integrated Intel® Extreme Graphics 2
- DirectX 8.0
- Max. shared memory 96MB
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz

Audio
- 5.1 CH Audio (C-Media 9761A Audio Codec)

LAN
- Realtek PCI LAN 8101L
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
- Supports PXE
Expansion / Connectivity

Slots
- 3 x PCI slots
- 1 x AGP slot for 1.5V 8X/4X AGP card

Connector
- 2 x SATA 1.5 Gb/s connectors (No Support for RAID and "Hot Plug" functions )
- 2 x ATA100 IDE connectors (support 4 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Power LED header
- 1 x CPU Fan connector (4-pin)
- 1 x Chassis Fan connector (3-pin)
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- AUX in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are shared with USB45)

Rear Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 1 x Parallel Port (ECP/EPP Support)
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (SPEED LED)
- Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature - ASRock APP Charger
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM

Accessories
- Quick Installation Guide, Support CD, I/O Shield
- ATA 100 Cable
- 1 x SATA Data Cable

Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor
- Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm

OS
- Microsoft® Windows® 98SE / ME / 2000 / XP compliant
