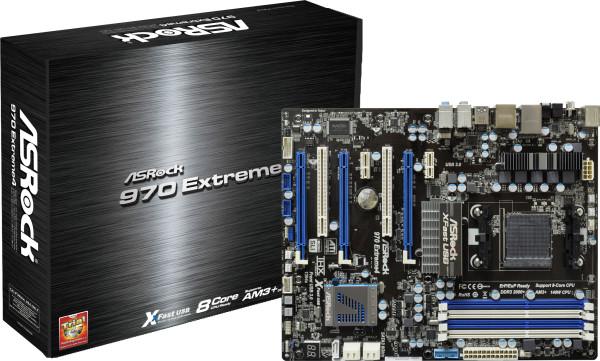

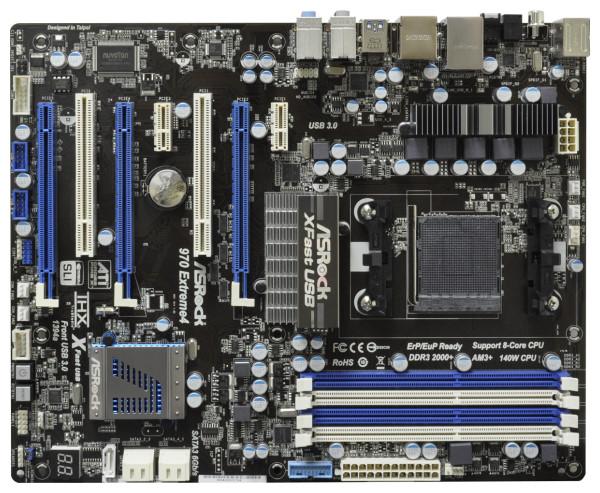

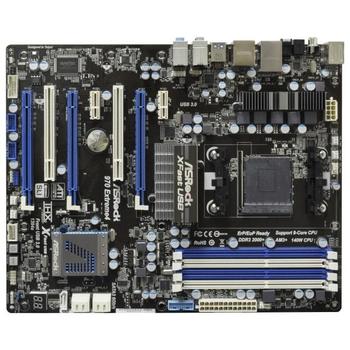

Základní deska ASROCK 970 Extreme4
Základní deska, socket AM3+, AMD 970/SB950, DualCH. DDR3, 3x PCIe 2.0, RAID, GLAN, FW, 4xUSB 2.0, 2xUSB 3.0, 8ch audio, AT
Toto zboží bylo již ukončeno.
Socket
Operační paměť
Funkce
Interní konektory
Externí konektory
ASRock Inc. – Jedná se o výrobce převážně základních desek. Společnost ASRock je dceřinnou společností AsusTek Computer Inc.
CPU - Support for Socket AM3+ processors
- Support for Socket AM3
processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon
II X4 / X3 / X2 / Sempron processors
- Supports 8-Core CPU
-
Supports UCC feature (Unlock CPU Core)
- V4 + 1 Power Phase Design
-
Supports CPU up to 140W
- Supports AMD's Cool 'n' Quiet Technology
-
FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
-
Supports Hyper-Transport 3.0 (HT 3.0) Technology
Chipset - Northbridge:
AMD 970
- Southbridge: AMD SB950
Memory - Dual Channel DDR3 memory
technology
- 4 x DDR3 DIMM slots
- Supports DDR3
2100(OC)/1866(OC)/1800(OC)/1600(OC)/1333/1066/800 non-ECC, un-buffered
memory
- Max. capacity of system memory: 32GB*
*Due to the
operating system limitation, the actual memory size may be less than 4GB
for the reservation for system usage under Windows® 32-bit OS. For
Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
-
ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS
2.3.1 Support
- CPU, VCCM, NB, SB Voltage Multi-adjustment
Audio,
Video and Networking
Graphics - n/a
Audio - 7.1 CH HD Audio with
Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray audio
support
- Supports THX TruStudio™
LAN - PCIE x1 Gigabit LAN
10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
-
Supports LAN Cable Detection
- Supports Energy Efficient Ethernet
802.3az
- Supports PXE
Expansion / Connectivity
Slots - 3 x PCI
Express 2.0 x16 slots (PCIE2/PCIE4: single at x16 (PCIE2) / x8 (PCIE4), or
dual at x8 (PCIE2) / x8 (PCIE4) ; PCIE5: x4 mode)
- 2 x PCI Express 2.0
x1 slots
- 2 x PCI slots
- Supports AMD® Quad CrossFireX™ , 3-Way
CrossFireX™ and CrossFireX™
- Supports NVIDIA® SLI™
SATA3
- 5 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1,
JBOD and RAID 5), NCQ, AHCI and "Hot Plug" functions
USB 3.0
- 2 x Rear USB 3.0 ports by Asmedia ASM1042, support USB 1.0/2.0/3.0 up to
5Gb/s
- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports) by Asmedia
ASM1042, supports USB 1.0/2.0/3.0 up to 5Gb/s
Connector - 5 x SATA3 6.0
Gb/s connectors
- 1 x IR header
- 1 x CIR header
- 1 x COM port
header
- 1 x IEEE 1394 header
- 1 x HDMI_SPDIF header
- 1 x Power
LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power
connector
- 8 pin 12V power connector
- Front panel audio connector
-
3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x USB 3.0 header
(supports 2 USB 3.0 ports)
- 1 x Dr. Debug (7-Segment Debug LED)

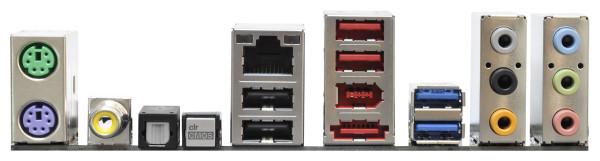

Rear
Panel I/O I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
-
1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 4 x
Ready-to-Use USB 2.0 Ports
- 1 x eSATA3 Connector
- 2 x Ready-to-Use
USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
-
1 x IEEE 1394 Port
- 1 x Clear CMOS Switch with LED
- HD Audio Jack:
Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker /
Microphone
Other Features / Miscellaneous
Unique Feature - ASRock
Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant
Flash
- ASRock APP Charger
- ASRock SmartView
- ASRock XFast USB
-
ASRock On/Off Play Technology
- Hybrid Booster:
- CPU Frequency
Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
-
Turbo UCC
Smart Switch - 1 x Power Switch with LED
- 1 x Reset
Switch with LED
- 1 x Clear CMOS Switch with LED
Support CD -
Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink
MediaEspresso 6.5 Trial, AMD OverDrive™ Utility, AMD Fusion, AMD Fusion
Media Explorer, ASRock Software Suite (CyberLink DVD Suite - OEM and Trial)
Accessories
- 1 x ASRock SLI_Bridge_2S Card
- Quick Installation Guide, Support CD,
I/O Shield
- 4 x SATA Data Cables (optional)
- 1 x 3.5mm Audio Cable
(optional)
Hardware Monitor - CPU Temperature Sensing
- Chassis
Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet
Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring:
+12V, +5V, +3.3V, Vcore
Form Factor - ATX Form Factor: 12.0-in x
9.6-in, 30.5 cm x 24.4 cm
- All Solid Capacitor design (100% Japan-made
high-quality Conductive Polymer Capacitors)
OS - Microsoft® Windows® 7
/ 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
