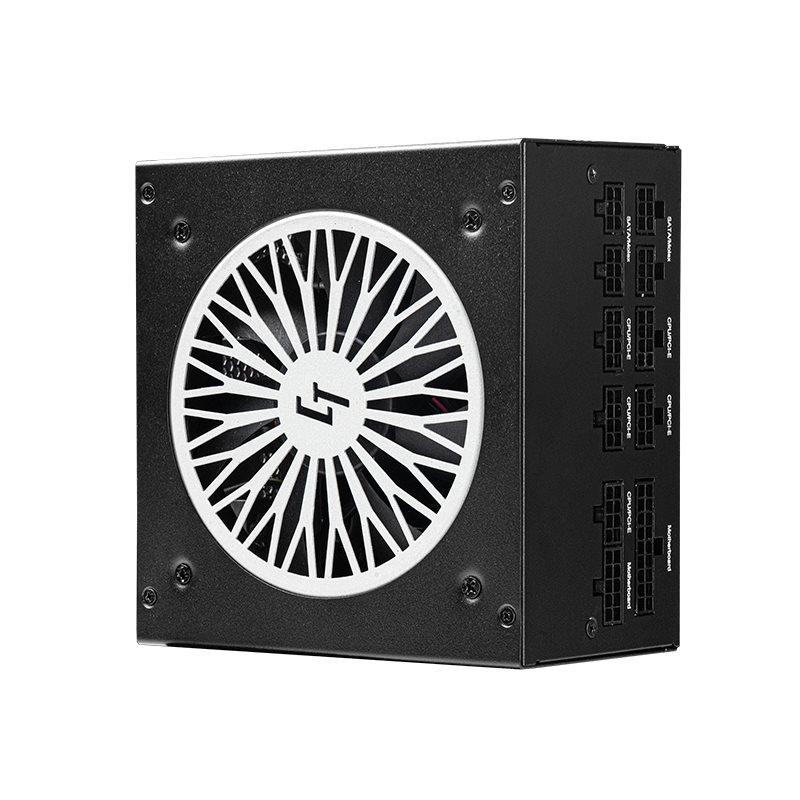

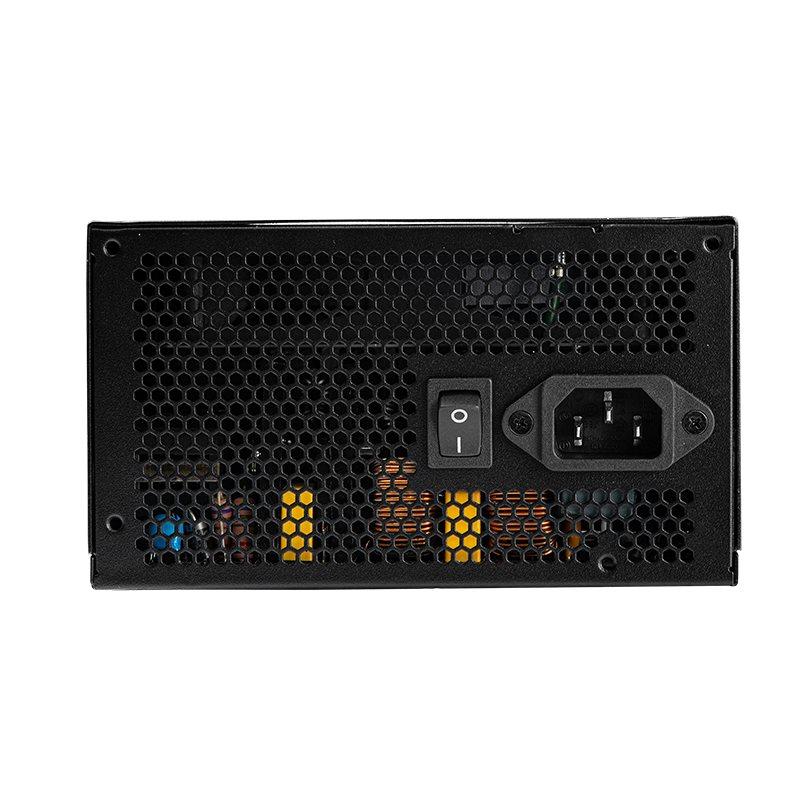

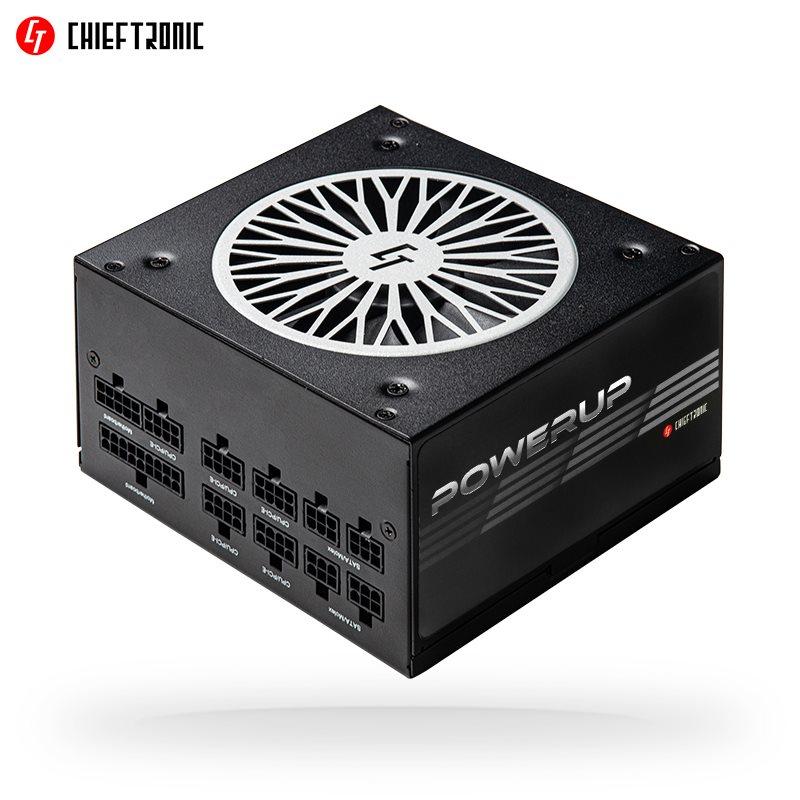

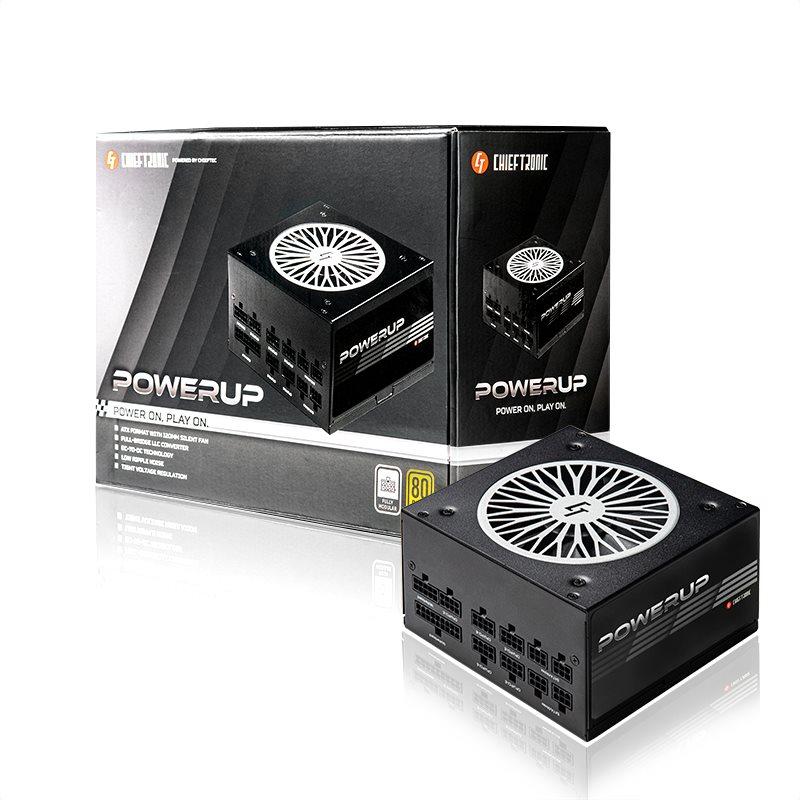

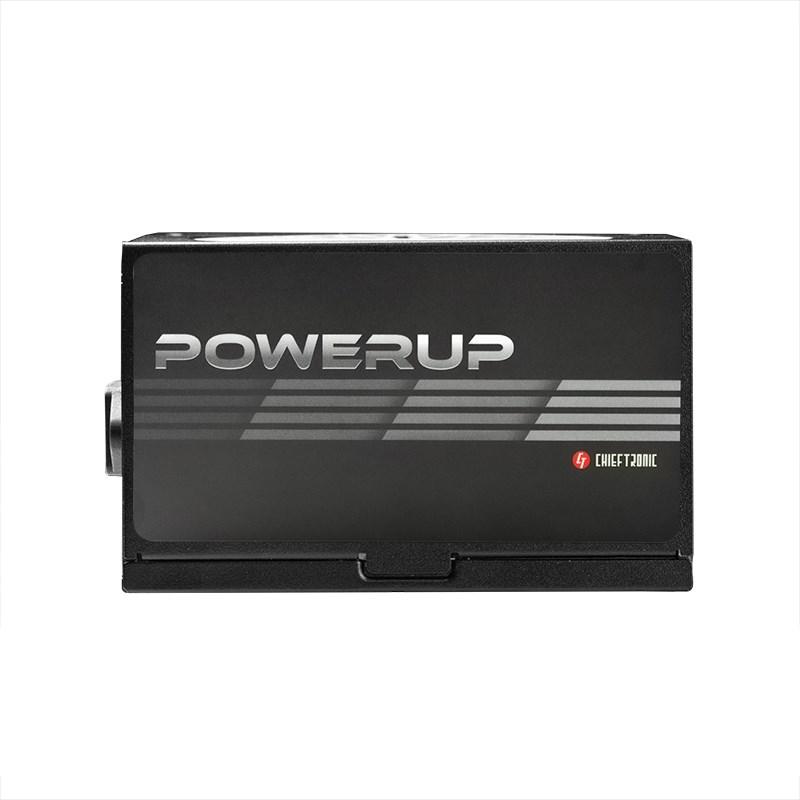

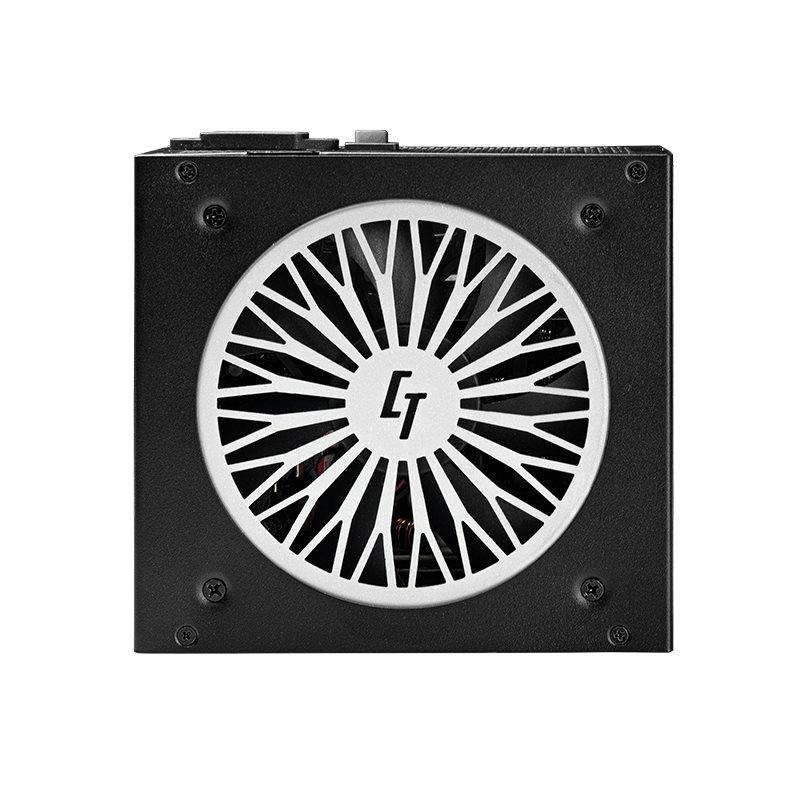

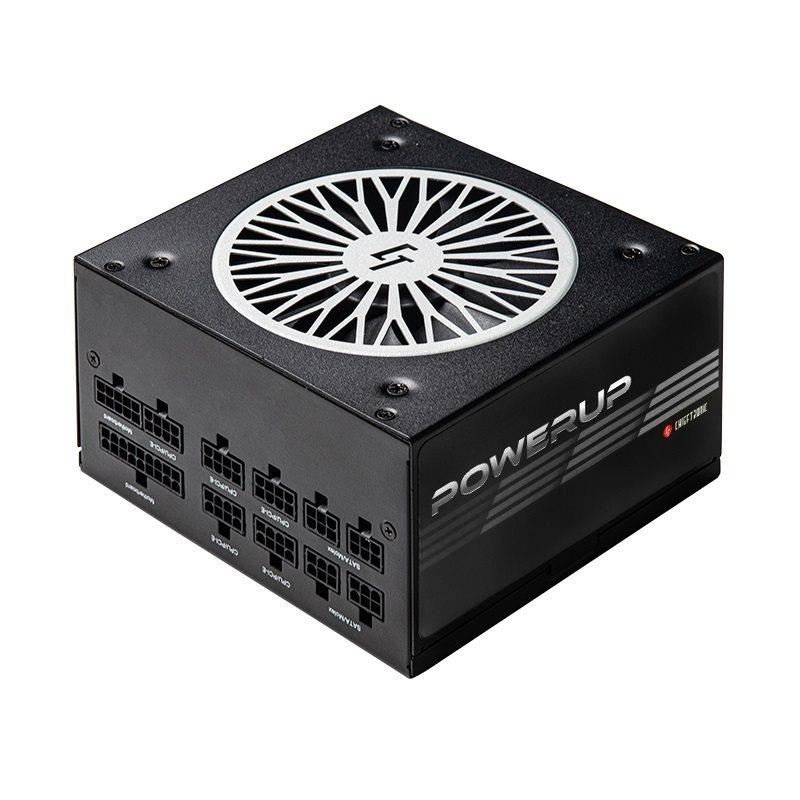

Zdroj CHIEFTEC GPX-750FC
Zdroj, ATX, 750W, 120mm FAN, aktivní PFC, 20+4pin, 80+ Gold
GPX-750FC
- 80 PLUS Gold certified efficiency

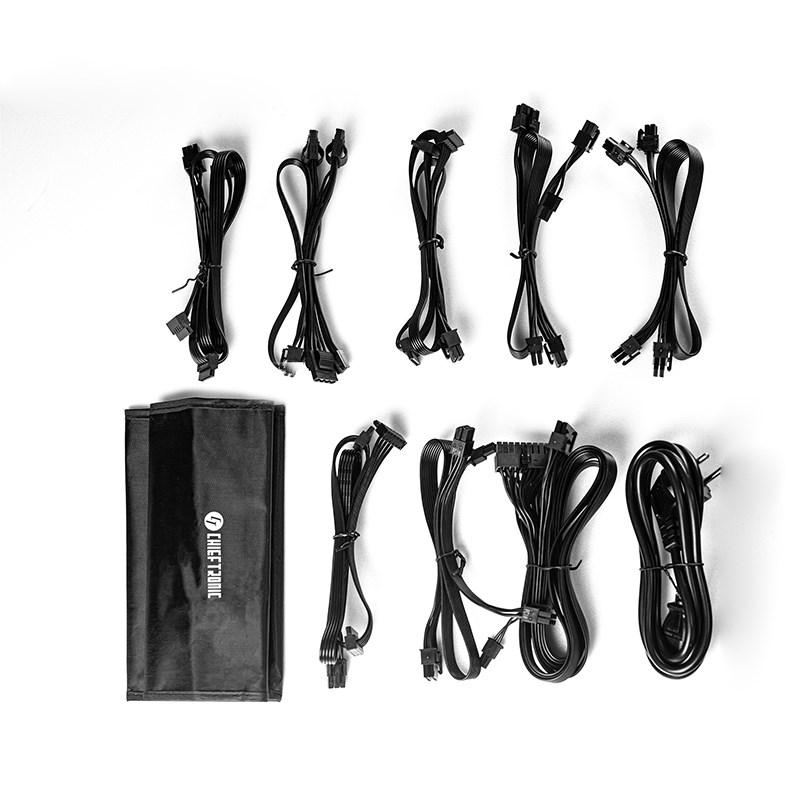

- Fully modular cable management
- Full-bridge LLC converter with DC-to-DC technology
- Low ripple and tight voltage regulation
- 5-year warranty
With the PowerUp series, Chieftronic aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.
- Fully modular cable management
- Full-bridge LLC converter with DC-to-DC technology
- Low ripple and tight voltage regulation
- 5-year warranty
With the PowerUp series, Chieftronic aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.
Zdroj
Výkon zdroje
750 W
Průměr ventilátoru
120 mm
PFC
aktivní
Konektor napájení základní desky
20+4 pin
Účinnost
Certifikace
80 PLUS Gold
Konektory
PCI Express 6+2-pin
4x
SATA 15-pin
9x
Molex HDD 4-pin
3x
Další parametry
Formát zdroje
ATX
SPECIFICATIONS
Performance
| Model | PowerUp 750W |
| Article no. | GPX-750FC |
| EAN code | 0753263077196 |
| Weight (without/with package) | 2.3 kg / 2.85 kg |
| AC Input | 100 - 240V / 10.0A |
| Frequency | 47 - 63Hz |
| +5V | 20A |
| +3,3V | 20A |
| +5V & +3,3V combined | 110W |
|
+12V |
62A/744W |
| -12V | 0.3A / 3.6W |
| +5VsB | 2.5A / 12.5W |
| Maximum Power | 750W |
Connectors
| 20+4PIN ATX | 1 |
| 8 PIN CPU (4+4) | 2 |
| 8 PIN PCIe (6+2) | 4 |
| SATA | 9 |
| MOLEX | 3 |
| FLOPPY | 1 |
Cable length
| 20+4PIN ATX | 650 |
| 8 PIN CPU (4+4) | 650/150 |
| 8 PIN PCIe (6+2) | 2x 500/150 |
| SATA | 3x 500/150/150 |
| MOLEX | 500/150/150/150 |
| FLOPPY | Molex |
Features
| ATX 12V Version | v2.53 |
| Efficiency | 80 PLUS Gold |
| Dimension (DxWxH) | 140 mm x 150 mm x 86 mm |
| PFC | Active PFC |
| Fan | 120mm silent fan |
| Security |
|
| Warranty | 60 Months |
- Zatím zde nejsou žádné dotazy / komentáře.
Zeptejte se nás na cokoliv ohledně tohoto produktu.

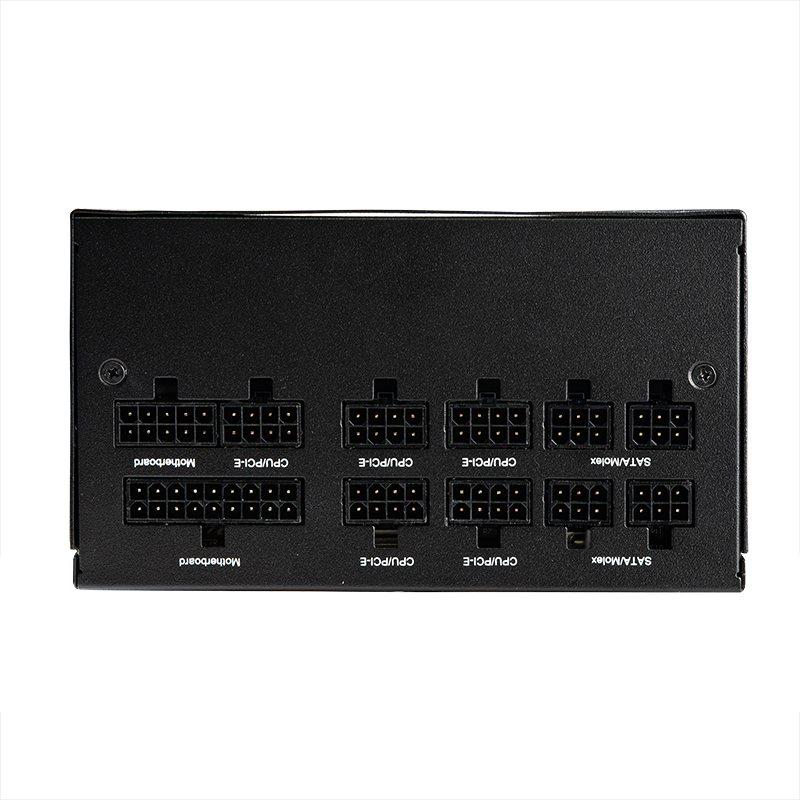

Další fotografie Zdroj CHIEFTEC GPX-750FC
