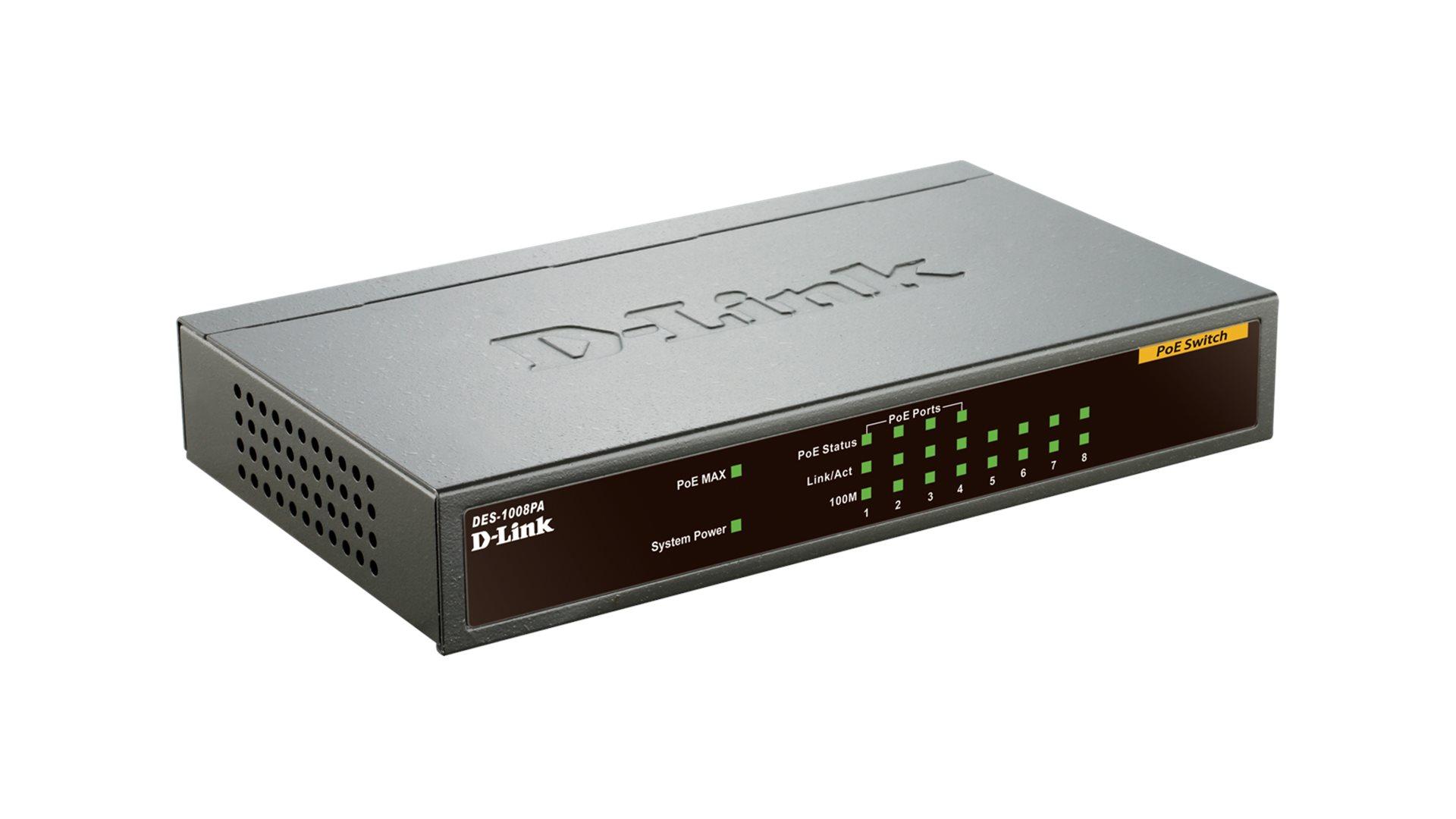

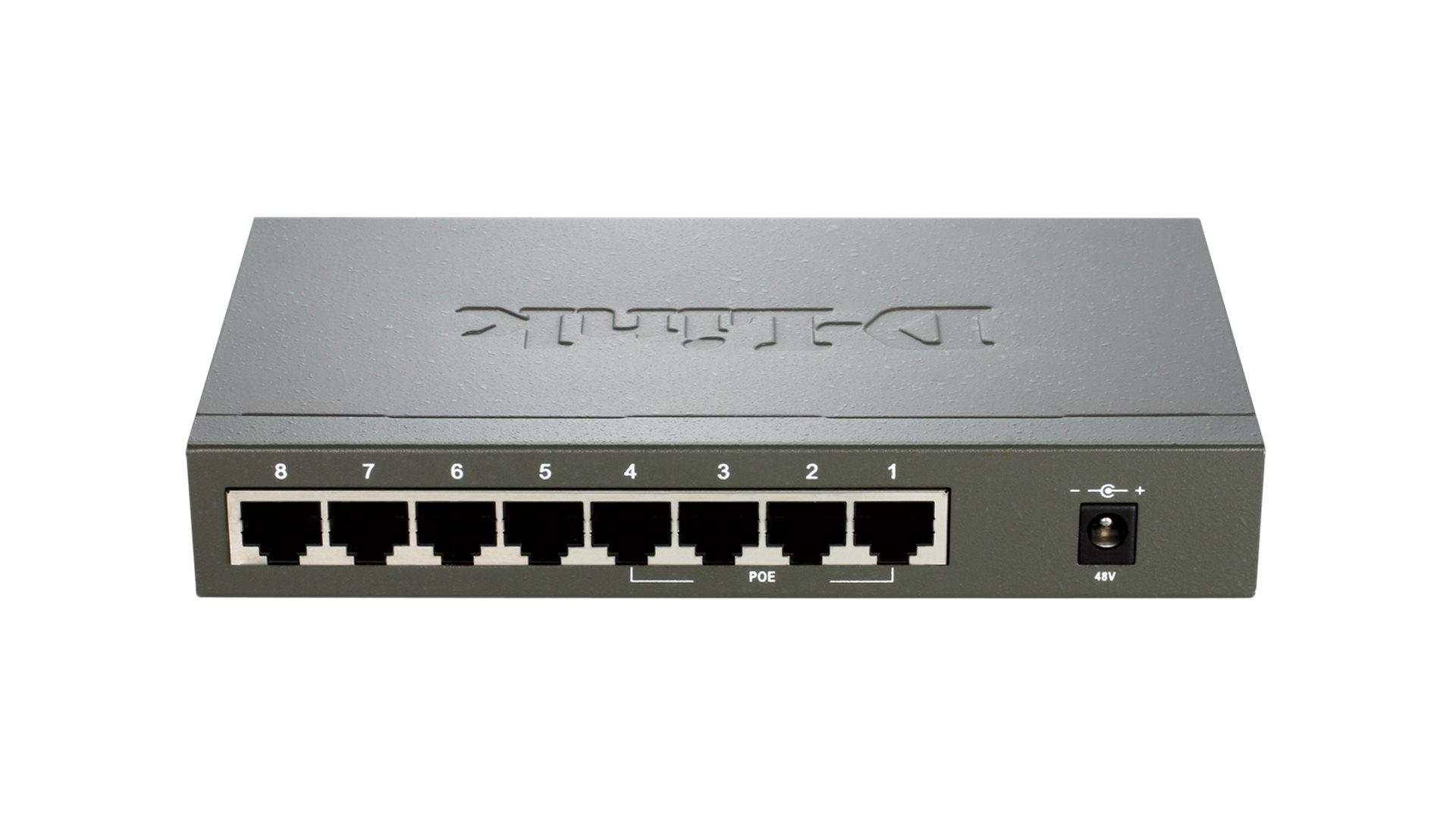

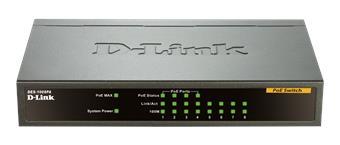

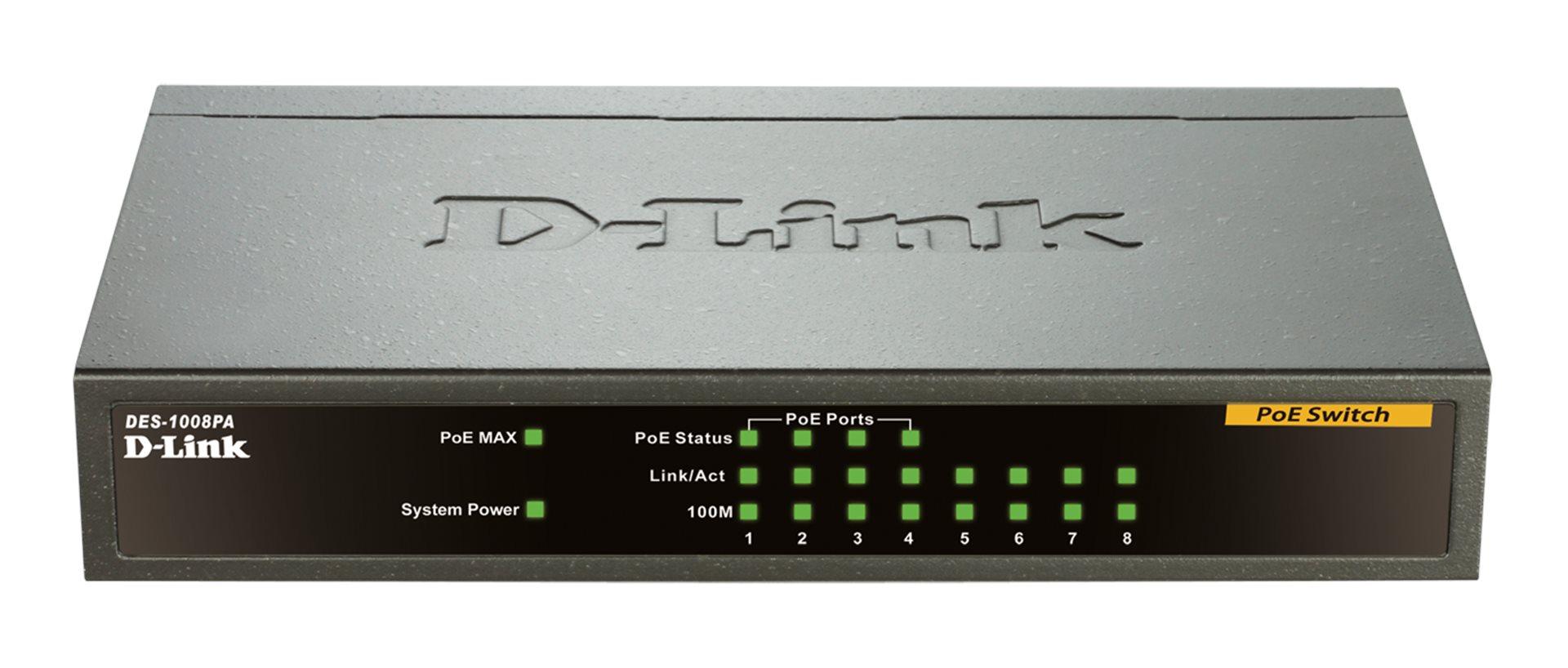

D-LINK DES-1008PA Desktop Switch

SPECIFICATIONS
Product/Performance Specifications
• MAC Address Table: 1K
• Switch Fabric: 1.6Gbps
• Transmission Method: Store-and-forward
• Packet Buffer Memory: 96KB

Diagnostic LEDs
• Per Unit: Power / PoE Max
• Per Port: Activity / Link & Speed
• PoE port: Power / Status

Interface Options
• RJ-45: 10BASE-T, 100BASE-TX

Network Protocol and Standards
• IEEE: 802.3 Ethernet, 802.3u, 802.3x Flow Control, 802.3af (Power over Data Pairs)

Electrical
• Power Supply: 48V DC/1.45A
• Max Power Consumption: 69 Watts maximum
• PoE budget: Up to 15.4 Watts max per port, for Ports 1-4 Only. 52 Watts Total

Operating Temperature
• Operating: 0° to 40°C
• Storage: -10° to 70°C

Operating Humidity
• 5% to 90% RH, Non-condensing

Certifications
• FCC Class B
• CE
• RoHS

Dimensions
• Item (WxDxH): 170,18 x 99,06 x 27,94 mm
• Packaging (WxDxH): 276,86 x 203,2 x 60,96 mm

Weight
• Item: 0,454 kg
• Packaging: 0,635 kg

Warranty
• Limited Lifetime

Minimum System Requirements
• Devices Supporting 802.3 Ethernet or 802.3u Fast Ethernet
• CAT5 Ethernet Cable
• Network Interface Card for Each Computer
• CD-ROM Drive to View Product Documentation

Package Contents
• 8-Port Desktop Switch with 4 PoE Ports
• Power Adapter
• CD-ROM with Product Documentation
