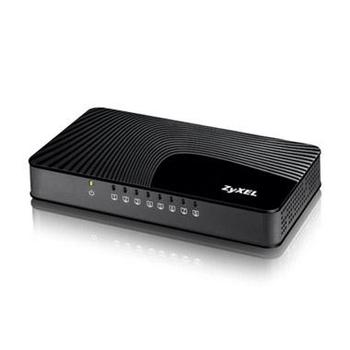

ZYXEL GS-108S

Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3 Nway auto-negotiation
IEEE 802.3x full duplex operation and flow control
IEEE 802.3az Energy Efficient Ethernet
Performance
Data transfer rate (half duplex/full duplex):
Ethernet: 10/20 Mbps
Fast Ethernet: 100/200 Mbps
Gigabit Ethernet: 1000/2000 Mbps
MAC address table: 8 K
Memory buffer: 128 KB
Switching fabric (non-blocking): 16 Gbps
Features
Auto-MDI/MDIX in all ports
Transmission method: store-and-forward architecture
Port-based QoS support
Jumbo frame support up to 9 KB

Hardware Specifications

Interface
Eight RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support
QoS Ports
Two high-priority QoS ports, two medium-priority QoS ports, and four low-priority QoS ports
LEDindicator
PWR: Power
Per port: Link/Activity
Power supply
Input: 100-240 V AC
Output: 5 V DC, 1 A
Power consumption: 4.5 watt max.

Physical Specifications

Item dimensions (WxDxH): 152 x 80 x 32 mm (5.99” x 3.15” x 1.26”)
Item weight: 150 g (0.33 lb.)
Packing dimensions (WxDxH): 157 x 86 x 96 mm (6.18” x 3.39” x 3.78”)
Packing weight: 250 g (0.55 lb.)

Environmental Specifications

Operating environment
Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90% (Non-condensing)
Storage environment
Temperature: -20°C to 70°C (-4°F to 158°F)
Humidity: 10% to 90% (Non-condensing)

Certification

CE, FCC class B, C-Tick, BSMI

Package Contents

Gigabit switch
Power adapter
Quick start guide
Warranty card
